36V Three Axis Vibration Sensor 5kHz Bias Stability M12 Connector

  • 1
  • 2
  • 3

Theory : Capacitance Sensor

anti-impact : 2000G

power supply : DC 9~36V

weight : 73.5

excellent bias stability : Yes

Output : Analog SENSOR

output : 0-5V

working temperature : -40°C to +85°C

vibration sensor axis : X, Y , Z

store temperature : -55°C to +100°C

Usage : VIBRATION SENSOR

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T,Paypal

Supply Ability : 3000 pcs/month

Delivery Time : 7 days for samples

Model Number : AKF390B

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : 1pcs vibration sensor in each inner box , 50pcs/ctn

Price : $235.00/Pieces

Contact Now

General Description

The AKF390 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

Feature
  • three axis (X,Y,Z)
  • output voltage: 0-5V
  • power supply:9-36V
  • anti-impact:2000G
  • working temperature: -40°C ~ +85°C
  • store temperature: -55°C ~ +100°C
  • size: L34.4*W34.4*H38mm
  • weight: 73.5g
  • excellent bias stability
  • Good environmental performance (impact, vibration and temperature)
Application
  • Crash record, fatigue monitoring and prediction
  • Wind power generation
  • Traffic system monitoring, roadbed analysis and high-speed railway fault detection
  • Large machinery, engine
  • Low frequency vibration and automatic monitoring
  • Medical equipment
  • Bridge
  • Vehicle
  • Road roller
36V Three Axis Vibration Sensor 5kHz Bias Stability M12 Connector
Technical Data:
Parameters AKF390B Unit
Range ±2 , ±4,  ±8 g
Bias calibration <1 mg
Measuring axis X,Y,Z axis
Power on/down repeatability <2 mg (max value)
Bias temperature coefficient [3] 0.05 mg/℃ typical value
Resolution / Threshold (@ 1Hz) < 1 mg(max)
Nonlinearity <3 % FS(max)
Bandwidth [4] 500 Hz
Resonance frequency 5 kHz
Output rate 5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz, can be set
Output voltage 0-5V
Magnetic based optional
Reliability MIL-HDBK-217,class 2
Anti-impact 100g@11ms,Triaxial and identical (half sine wave)
Restore time <1ms (1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration 20g rms,20~2000Hz (Random noise, o, p, i acting on each axis for 30 minutes)
Input(VDD_VSS) 9-36 VDC
Operating current consumption <60mA @ 12 VDC
Connector Industry standard M12 connector
Weight 73.5g
Size Magnetic adsorption installation size:34.3*34.3*43.2mm,
Screw positioning installation size:34.3*34.3*38.5mm
36V Three Axis Vibration Sensor 5kHz Bias Stability M12 Connector

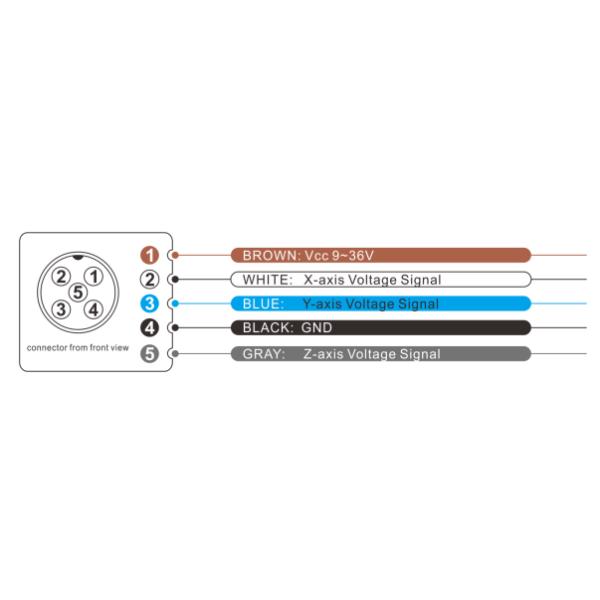

Electrical connection:
Color
Function		 BLACK WHITE BLUE BROWN GRAY
GND
Power GND		 X-axis voltage signal Y-axis voltage signal Vcc 9~36V
Power supply positive		 Z-axis voltage signal
36V Three Axis Vibration Sensor 5kHz Bias Stability M12 Connector
FAQ
Q1. What is your delivery terms?
A: EXW, FOB, CNF, DAP
Q2. What is your terms of payment?
A: T/T 100% , Paypal,
Q3. How about your delivery time?
A: Generally, it will take 7 days for production against the payment confirmation
Q4. Can you produce according to customers requirements?
A: Yes, we could provide customized solution.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?
A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
